Press Unloaders - Servo Actuated

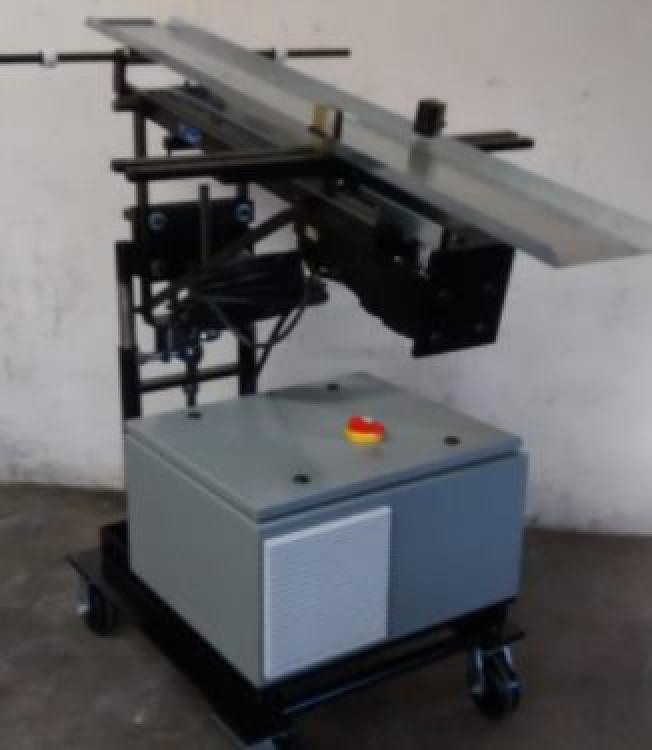

BMC Model 200s Servo

Tray travel max. = 530mm [21"]
Press stroke range = 75mm to 750mm [3" to 30"]

Servo actuated for increased functionality and efficiency.

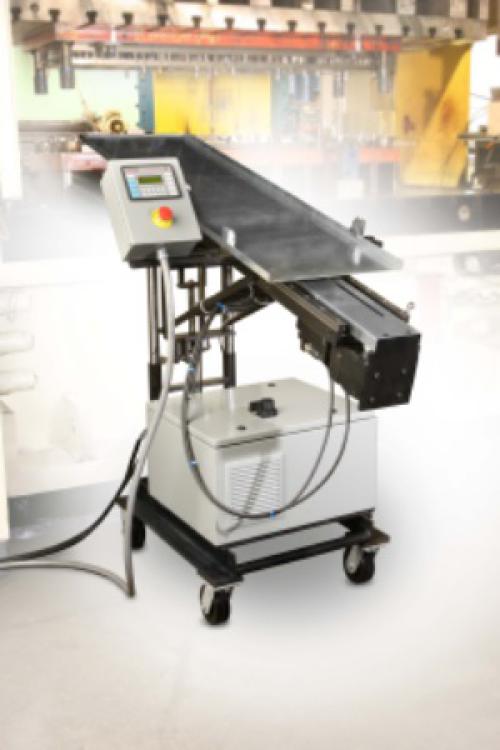

BMC Model 300s Servo

Tray travel max. = 850mm [33"]
Press stroke range = 75mm to 1000mm [3" to 40"]

Servo actuated for increased functionality and efficiency.

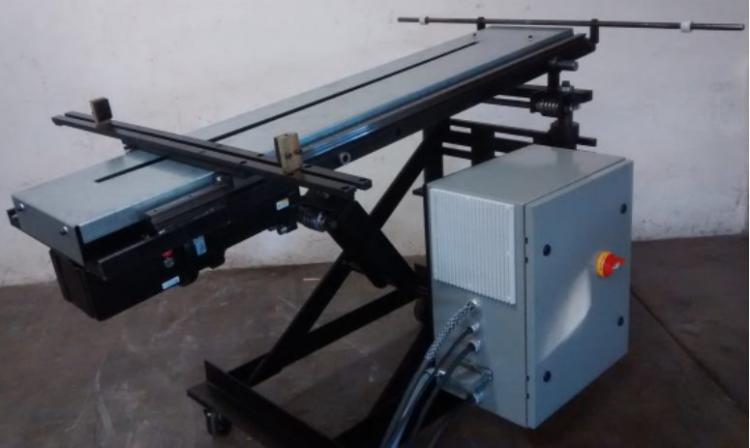

BMC Model 320s Servo

Tray travel max. = 1250mm [50"]
Press stroke range = 75mm to 1000mm [3" to 40"]

Servo actuated for increased functionality and efficiency.

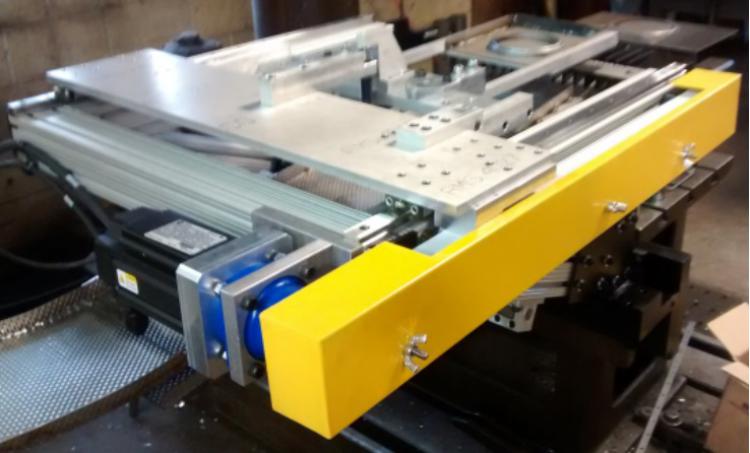

Fineblank Unloader Model 220s Servo

Tray travel max. = 750mm [30"]
Press stroke range = 75mm to 750mm [3" to 30"]

The Model 220 catches the slug and pulls the finished part off the lower die. They both land on their own trays. Parts can be ejected onto tables, conveyors, or into containers.

Custom Unloaders

Custom Unloaders

Bachhuber can design custom versions of our press unloaders where the application calls for it.

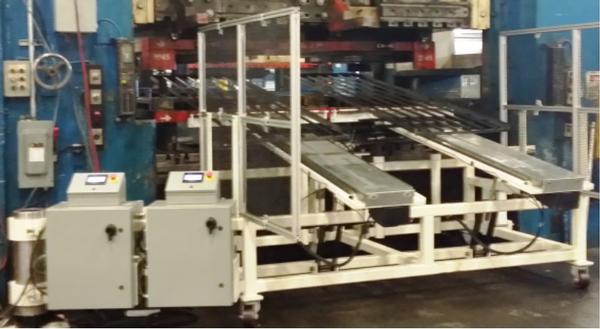

The video shows a Dual Model 320S. Both unloaders swivel on a common trunion to allow for die access. Retrieval of parts from either single out or two out dies is accomplished with minimal changeover.
